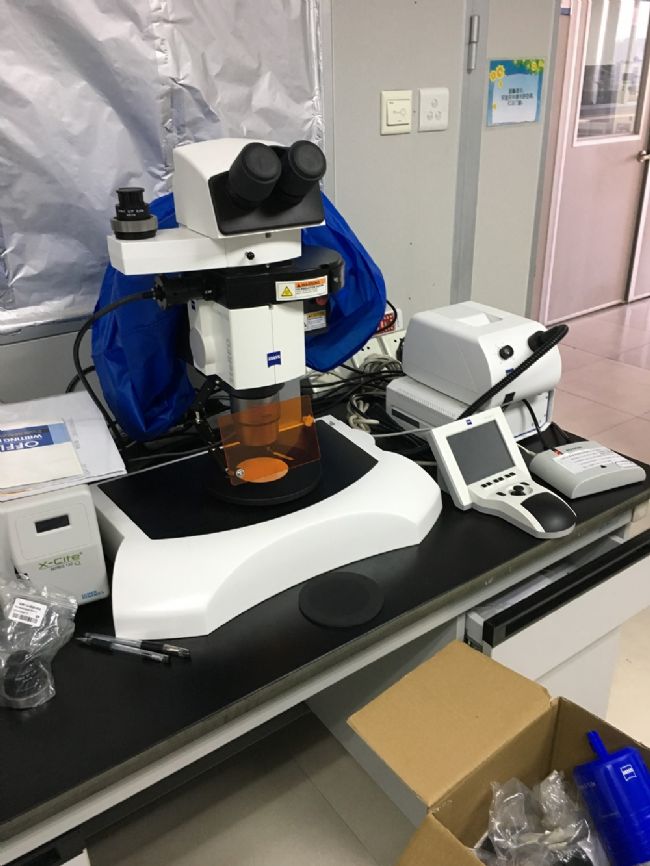

Frequently, customers asked us about the problem of fluorescent microscope bulbs and light source replacement. Recently, Guangzhou Keshi Special Science Instrument Co., Ltd. just installed several fluorescence microscopes, and briefly introduced the replacement of the fluorescence microscope light source. Users familiar with the microscope know that the laboratory-imported research-grade fluorescence microscopes are mainly Zeiss, Leica, Nikon and Olympus. These fluorescent light sources are basically provided by Lumen Dynamic, a Canadian photoelectric company. Mainly for microscope fluorescence source, Guangzhou Keshi Special Science Instrument Co., Ltd. is the domestic authorized agent of Lumen dynamic, which is directly imported from Canada, with favorable price and fast delivery speed. The installation and replacement of the light source is actually very simple. It can be installed in about 10 minutes. Now the imported microscope manufacturer's door-to-door speed is usually slow or expensive. The user can install it himself or contact the Guangzhou Cosette engineer for free. Quickly solve this small problem. Let's take a microscope brand as an example to briefly introduce how to install the light source. If you have any questions, you can contact Guangzhou Keshite Co., Ltd. for consultation.

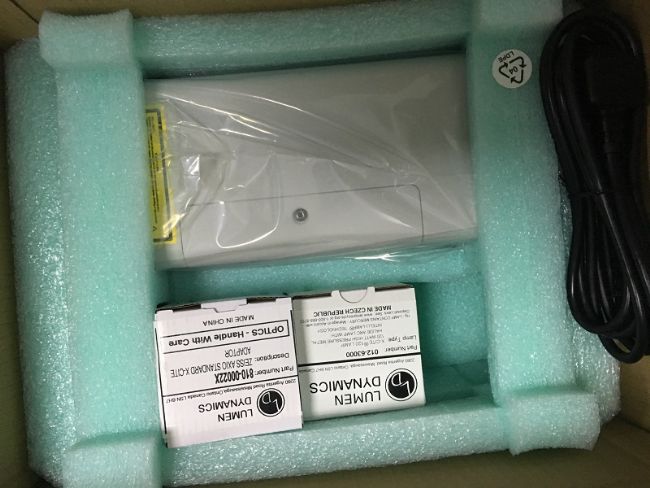

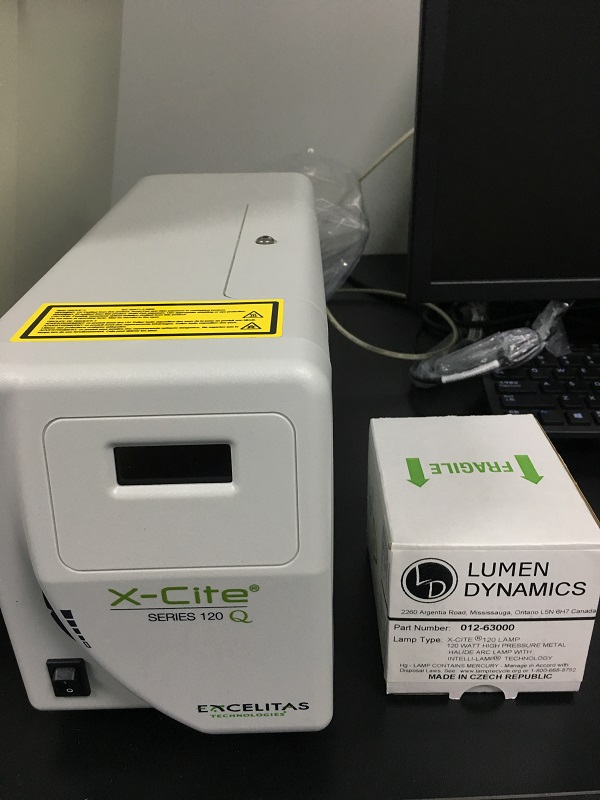

one. Open the outer box with a fluorescent light source host, power cord, light bulb and optical adapter.

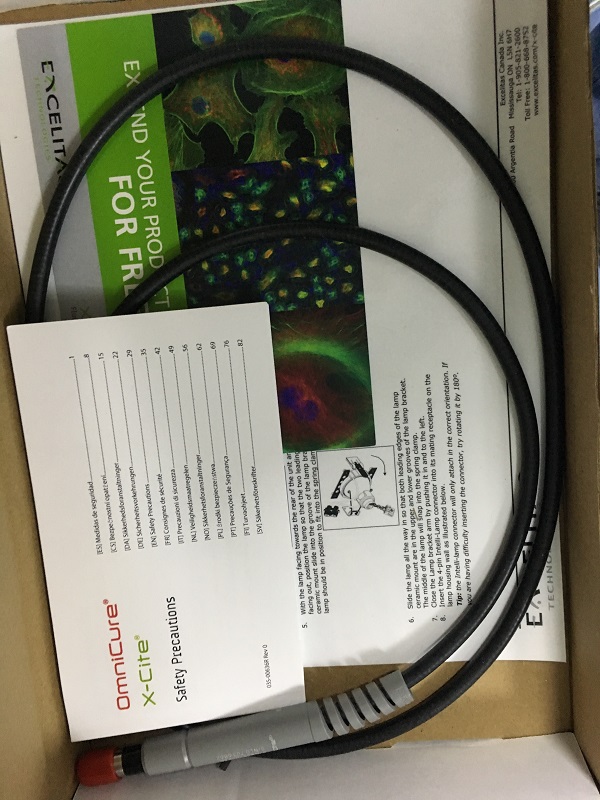

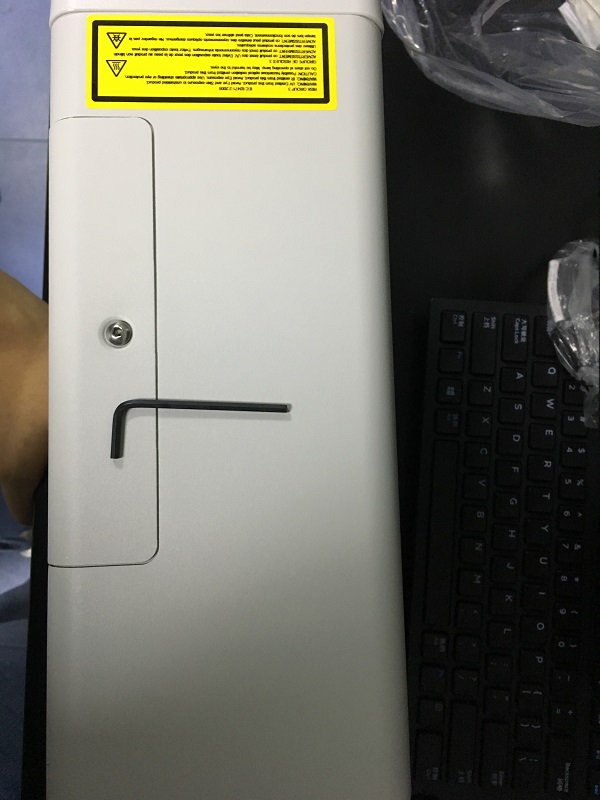

2. There is also a separate carton with a set of fiber optic cable, product manual, warranty card, and a hexagonal screw tool. This is the hexagonal screw used to open the main box, as shown below.

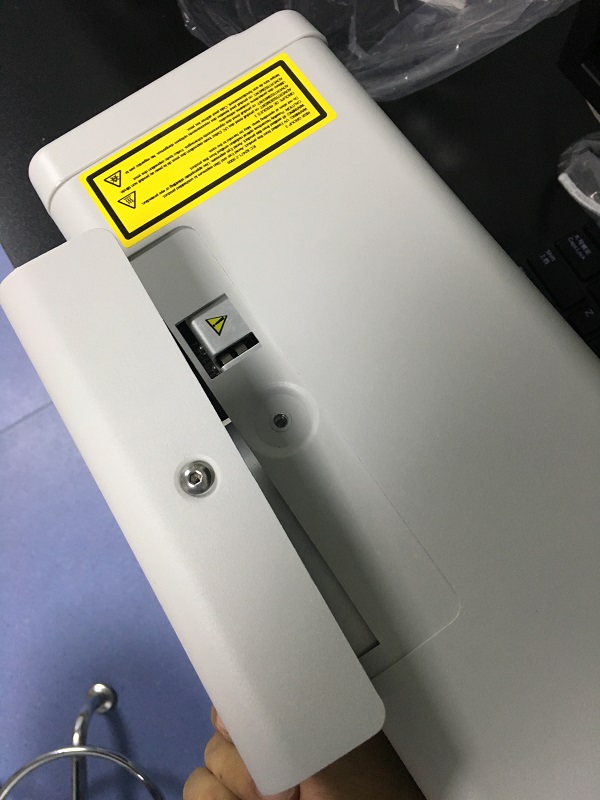

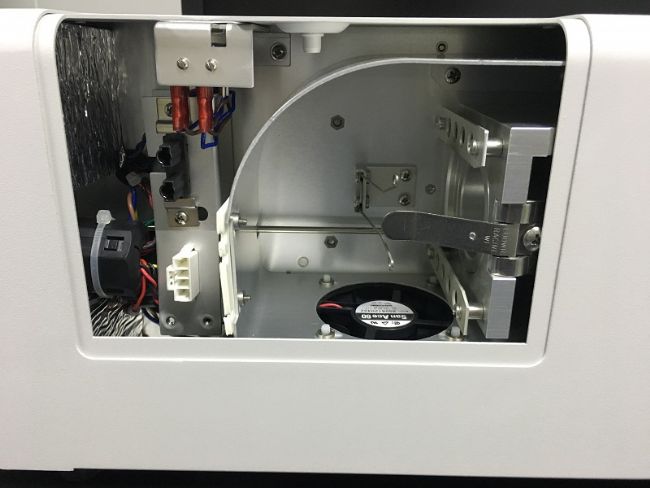

3. Open the light source cover with the supplied hexagonal screw. The image after opening the cover is as follows.

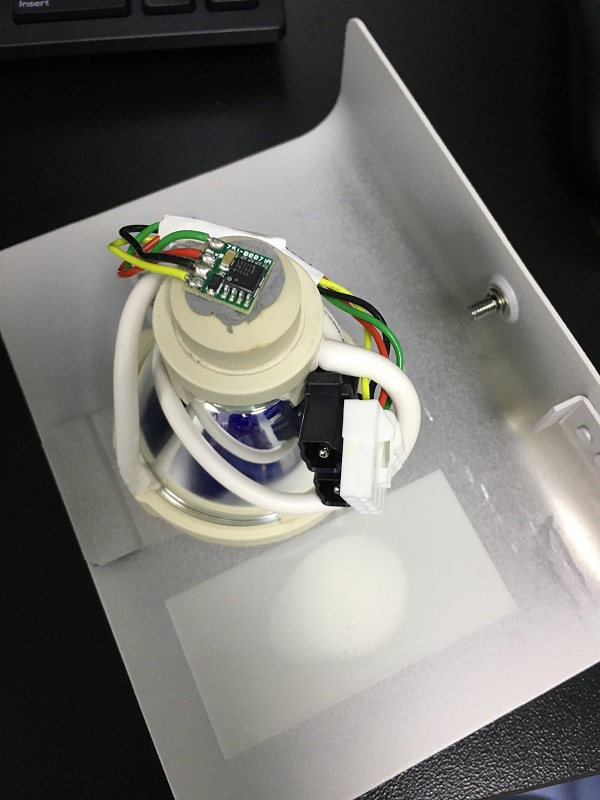

4. Unpack the outer bulb of the fluorescent bulb and remove the bulb.

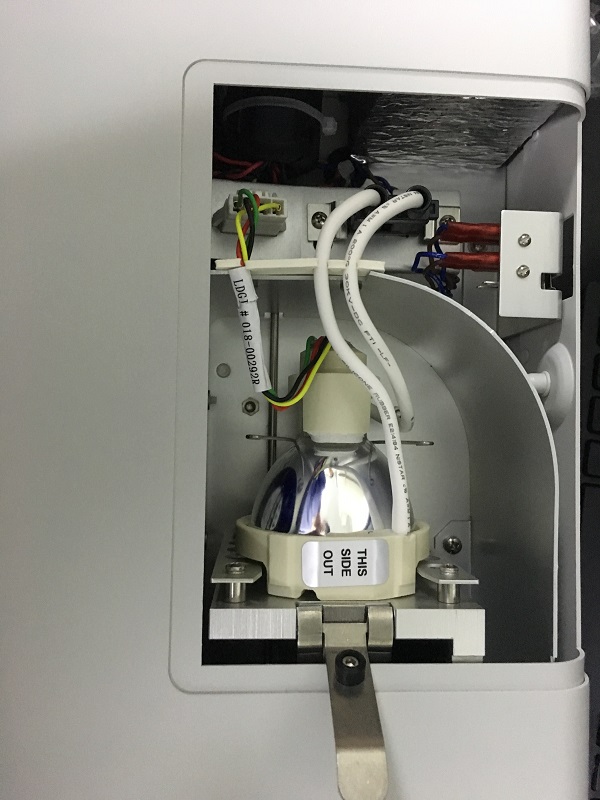

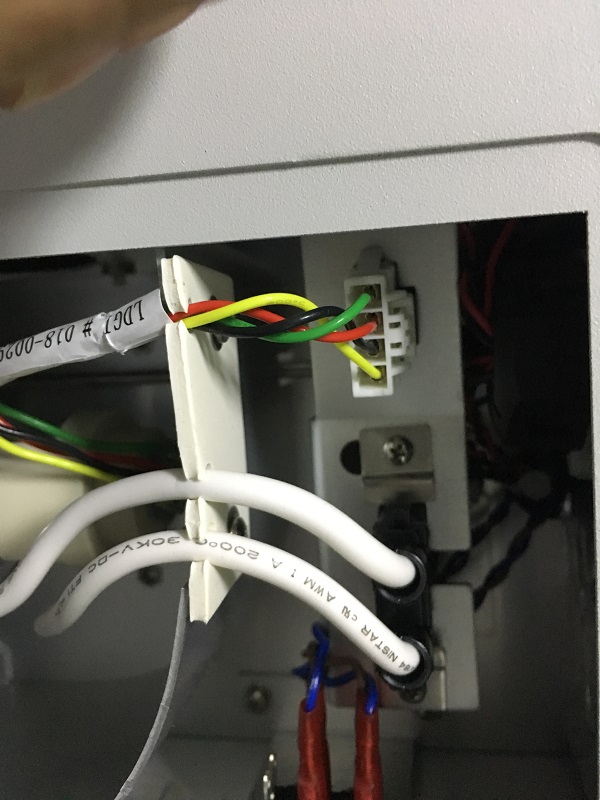

5. Pry the baffle inside the light source and insert the two foot wires of the bulb module into the corresponding host sockets.
6. Return the mounting bracket to its original position to secure the lamp module. Close the cover and tighten the cover with a hex driver.

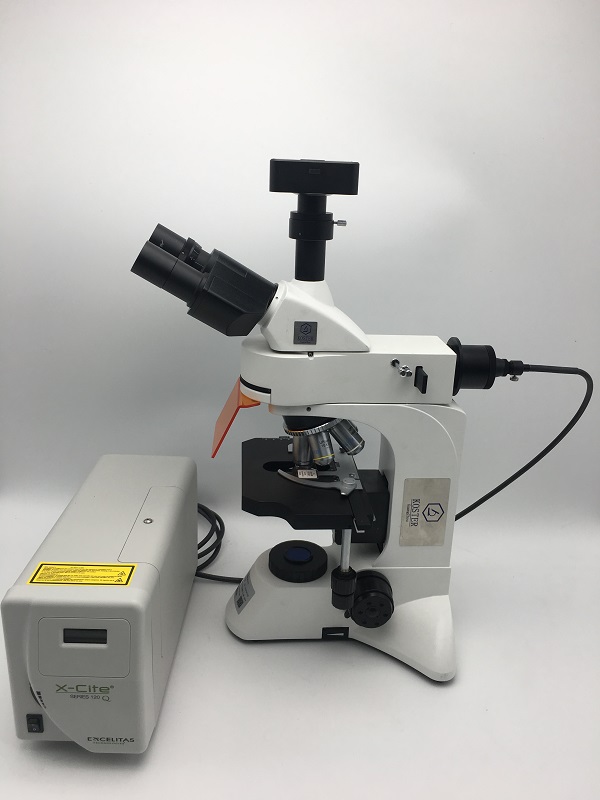

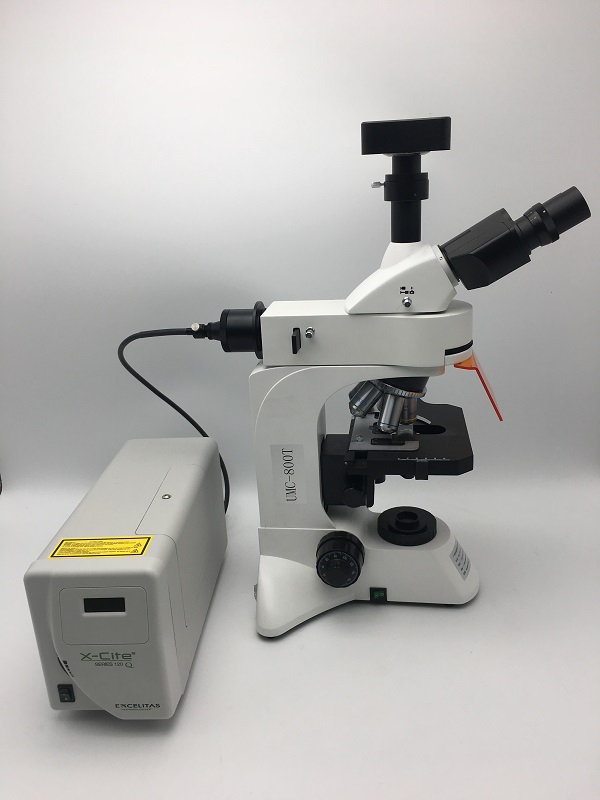

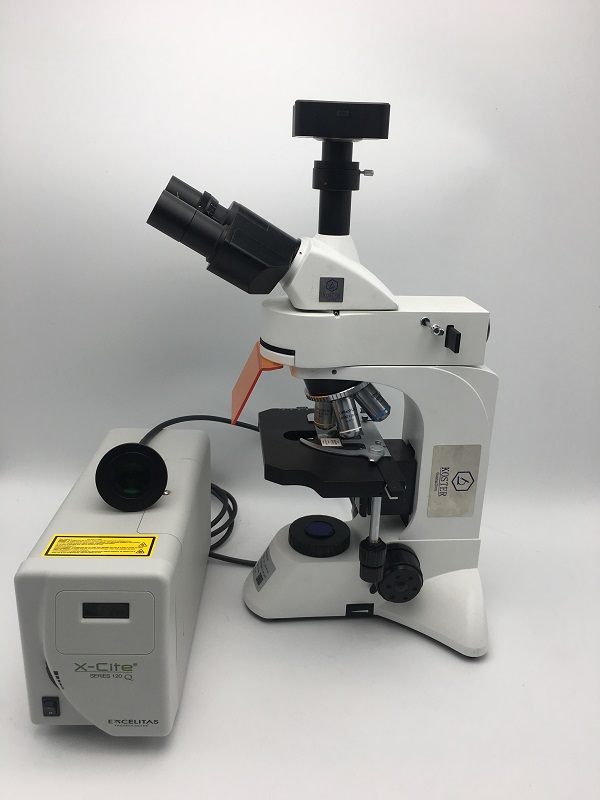

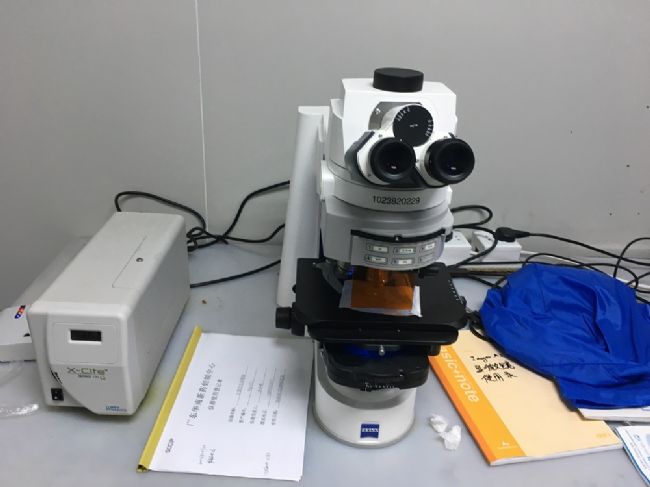

7. Connect the power cord and insert the light source into the light source input of the microscope to complete the installation of the microscope fluorescent light source.
